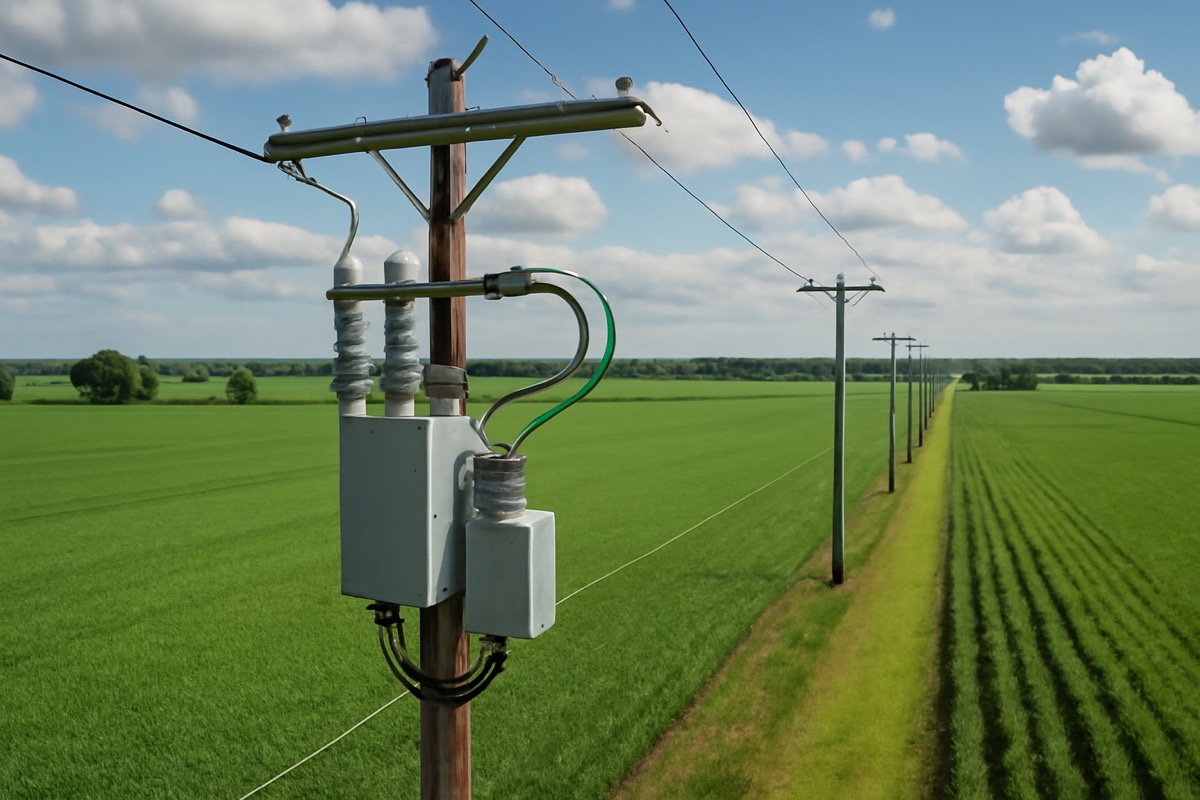

What Is a Distribution Recloser?
A distribution recloser — formally known as an automatic circuit recloser (ACR) — is arguably the most important single device in a modern overhead distribution network. It is a self-contained switching device that combines a medium-voltage circuit breaker (almost always vacuum at 12-38 kV), current transformers (CTs), a microprocessor-based protection relay, and often a communication module in a single integrated unit designed for outdoor pole-mounted or pad-mounted installation. For a comparison with simpler devices, see our recloser vs sectionalizer guide.
The recloser's defining feature is its ability to automatically detect a fault, trip to interrupt the fault current, wait a preset dead time, and then reclose to re-energize the line — all without human intervention. If the fault was temporary (which 80-90% of overhead line faults are), the line is restored in less than a second. If the fault is permanent, the recloser retries a programmed number of times and then locks out, keeping the line de-energized until a repair crew can address the issue.
This simple automation eliminates the vast majority of sustained outages on overhead distribution feeders, making the recloser one of the highest-ROI investments a utility can make in network reliability.
Why 80-90% of Overhead Faults Are Temporary
Understanding why most overhead line faults are temporary is key to understanding why reclosers exist. The most common fault causes on overhead distribution lines are:
| Cause | Typical % | Nature | Why It Clears |
|---|---|---|---|
| Tree branch contact | 30-40% | Temporary | Branch burns off or blows away after arc |
| Lightning flashover | 20-30% | Temporary | Insulation recovers after impulse discharge |
| Animal contact | 10-15% | Temporary | Animal falls away after arc; insulation recovers |
| Wind-blown debris | 5-10% | Temporary | Debris blows away after momentary contact |
| Conductor clashing | 5-10% | Temporary | Conductors separate after wind subsides |
| Insulator failure | 5-10% | Permanent | Requires replacement |
| Conductor break / pole damage | 5-10% | Permanent | Requires repair |
Without a recloser, every one of these faults — temporary or permanent — results in a sustained outage until a crew arrives. With a recloser, only the permanent faults (10-20% of total) result in sustained outages. The rest are cleared automatically in seconds.
How a Distribution Recloser Works: Step by Step
Here is the complete operating sequence of a typical distribution recloser responding to a fault:
- Normal operation: The recloser is closed, carrying normal load current. Its built-in CTs continuously measure line current and report to the microprocessor controller.
- Fault detection: A fault occurs downstream (e.g., tree branch contacts a conductor). The current spikes from normal load (50-200 A) to fault level (2,000-20,000 A). The controller detects that the current exceeds the overcurrent pickup setting.
- Fast trip (Shot 1): The controller commands the vacuum interrupter to open immediately. The fast trip curve is deliberately set for very short clearing time (50-100 ms total) to minimize arc energy and conductor damage at the fault location.
- Dead time 1: The recloser waits 0.5-2 seconds with the contacts open (line de-energized). During this interval, the arc at the fault location extinguishes and the insulation has time to recover.
- First reclose: The controller commands the vacuum interrupter to close. If the fault was temporary (e.g., the tree branch burned off), normal load current resumes and the sequence ends — the line is restored in about 1 second total.
- Delayed trip (Shot 2): If the fault is still present, the recloser detects the high current again but this time uses a delayed trip curve (0.2-0.5 seconds). The longer delay allows downstream fuses to blow and isolate the fault before the recloser trips.
- Dead time 2: A longer dead time (15-30 seconds) allows more time for temporary faults to clear.
- Second reclose: The controller closes the contacts again. If the fault has cleared, the sequence ends.
- Lockout: If the fault persists after the programmed number of attempts (typically 2-4), the recloser locks out — it stays open and sends an alarm to the control center. A permanent fault requires crew dispatch.
The entire sequence from fault inception to lockout typically takes 30-90 seconds. Compare this to the 1-8 hours required for manual fault response, and the value of the recloser becomes clear.
Construction: Inside a Modern Distribution Recloser
A modern pole-mounted distribution recloser consists of four main subsystems:
1. Vacuum Interrupter Assembly
The circuit-breaking element is almost universally a vacuum interrupter at medium voltage (12-38 kV). The vacuum interrupter provides fast arc extinction, long mechanical life (10,000+ operations), and zero greenhouse gas emissions. It is mounted inside a sealed, weather-resistant housing with silicone rubber or epoxy resin insulation for outdoor exposure.
Learn more about vacuum interrupter technology: Vacuum Interrupter: Working Principle, Construction & Selection Guide
2. Current Transformers (CTs)
Built-in three-phase CTs provide current measurement for the protection relay. The CTs are typically window-type or bushing-type, rated for the full continuous current and able to accurately measure fault currents up to the rated breaking capacity (20-25 kA). Some reclosers also include zero-sequence CTs for sensitive earth fault detection.
3. Microprocessor Controller
The brain of the recloser. Modern controllers provide:
- Overcurrent protection: Phase and ground fault, with multiple curve shapes (IEC/IEEE standard inverse, very inverse, extremely inverse, definite time)
- Reclosing logic: Configurable number of shots (1-4), dead times, and fast/slow curve sequences
- Directional protection: For networks with distributed generation (DG) where fault current can flow in both directions
- Voltage/frequency protection: Under/over voltage, under/over frequency for DG interconnection
- Event recording: Fault current magnitude, duration, and waveform capture for post-fault analysis
- Remote communication: GPRS, 4G LTE, or fiber optic for SCADA integration
4. Operating Mechanism
Spring-operated or magnetic actuator mechanisms provide the energy to open and close the vacuum interrupter. The mechanism must deliver sufficient speed (0.8-1.2 m/s contact velocity) and force to ensure reliable arc interruption. Modern mechanisms are designed for 10,000 or more operations between maintenance intervals.
Types of Distribution Reclosers
| Type | Mounting | Voltage | Typical Application |
|---|---|---|---|
| Single-phase | Pole-mounted | 15-27 kV | Single-phase laterals, rural feeders with single-phase loads |
| Three-phase pole-mounted | Pole-mounted | 12-38 kV | Most common; main feeders, branch points, DG interconnection |
| Pad-mounted | Ground level | 15-38 kV | Underground cable systems, urban areas, substations |
| Substation class | Indoor/outdoor | 12-38 kV | Substation feeder positions replacing conventional breakers |
The three-phase pole-mounted recloser is by far the most widely deployed type globally, accounting for approximately 70% of all recloser installations.
Protection Settings: Getting the Coordination Right
Correct protection settings are essential for a recloser to work effectively within a coordinated protection scheme. The key settings are:
Overcurrent Pickup
- Phase pickup: Typically set at 150-200% of maximum load current. Must be above the highest expected load (including cold load pickup after a sustained outage) but well below the minimum fault current.
- Ground pickup: Typically set at 20-40% of phase pickup for sensitive earth fault detection. Must be above the highest expected unbalance current.
Time-Current Curves
- Fast curve (Shot 1): Fastest available curve to minimize arc energy. Often set to "instantaneous" with a very short time delay (50-100 ms).
- Slow curve (Shot 2+): A delayed curve (IEC very inverse or extremely inverse) that allows downstream fuses to blow before the recloser trips. This achieves fuse-saving on the first shot and fuse-clearing on subsequent shots.
Reclose Settings
- Dead time 1: 0.5-2 seconds (fast reclose to minimize interruption duration)
- Dead time 2: 15-30 seconds (longer delay for more difficult temporary faults)
- Dead time 3: 30-60 seconds (optional; last chance before lockout)
- Reset time: 30-90 seconds of normal operation after a successful reclose before the shot counter resets to zero
Distribution Reclosers in Smart Grid Networks
Modern distribution reclosers are the workhorses of distribution automation (DA) and FLISR (Fault Location, Isolation, and Service Restoration) — the core smart grid functions that enable self-healing distribution networks.
In a FLISR-enabled network, communicating reclosers and automated switches work together (coordinated by a Distribution Management System) to:
- Locate the fault section using fault current data from multiple reclosers
- Isolate only the faulted section by opening the nearest reclosers/switches on either side
- Restore power to the healthy sections by closing a normally-open tie switch to backfeed from an adjacent feeder
FLISR can reduce sustained outage duration from hours to under 60 seconds. Utilities deploying FLISR typically report 40-60% improvement in SAIDI and 50-70% improvement in SAIFI.
For more on recloser coordination with sectionalizers in smart grid networks, see: Auto Recloser vs Sectionalizer: Key Differences
Key Specifications When Sourcing a Recloser
When specifying a distribution recloser for procurement, include these parameters in your technical specification:
| Parameter | Common Specification | Notes |
|---|---|---|
| Rated voltage | 12 / 24 / 27 / 38 kV | Match to system voltage class |
| Rated current | 400 / 630 / 800 A | Must exceed max load + cold load pickup |
| Breaking capacity | 12.5 / 16 / 20 / 25 kA | Must exceed max prospective fault current |
| Mechanical life | 10,000-30,000 operations | Higher for frequent switching |
| Reclose attempts | 1-4 (programmable) | Utility policy dependent |
| Protection functions | 50/51, 50N/51N, 79, 27, 59 | ANSI function numbers |
| Communication | GPRS / 4G LTE / fiber | For SCADA and FLISR |
| Power supply | PT / solar + battery | Solar for remote locations |
| Insulation | Silicone rubber / epoxy | Silicone preferred for pollution areas |
| Standards | IEC 62271-111 / IEEE C37.60 | Regional standard preference |
NAIJI Electric Distribution Recloser Solutions
NAIJI Electric's ZW32-12 series serves as the foundation for pole-mounted automatic recloser systems. The ZW32-12 vacuum circuit breaker is designed for outdoor distribution automation with:
- Rated voltage: 12 kV, rated current: 630 A, breaking capacity: 20 kA
- 10,000 mechanical operations — sufficient for 20+ years of reclosing duty
- Vacuum interrupter with CuCr contacts for reliable arc extinction
- Full-silicone-rubber insulation for all weather conditions
- Compatible with external recloser controllers and SCADA systems
For complete recloser systems including the microprocessor controller, CTs, and communication module, contact the NAIJI Electric engineering team with your network specifications.
